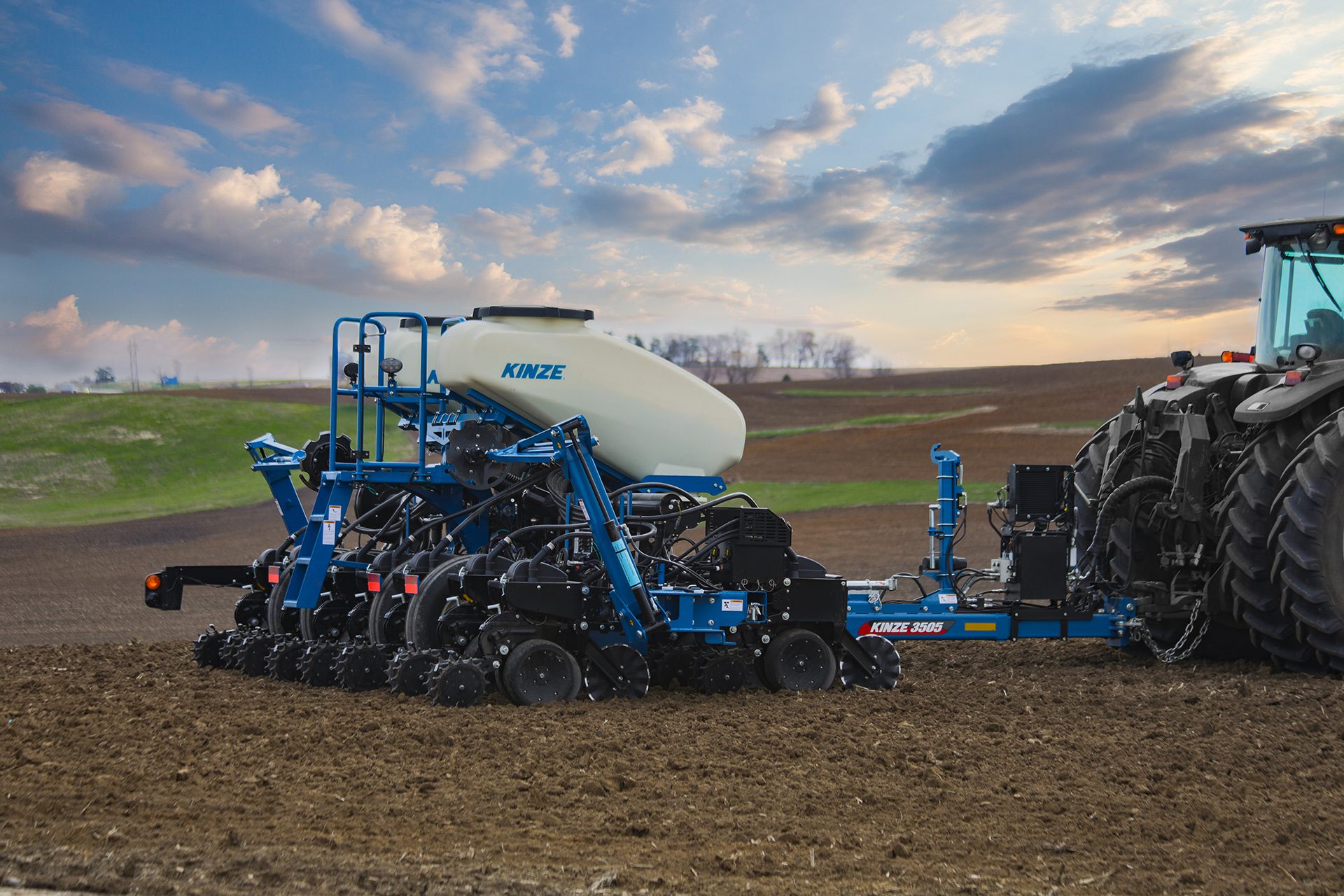

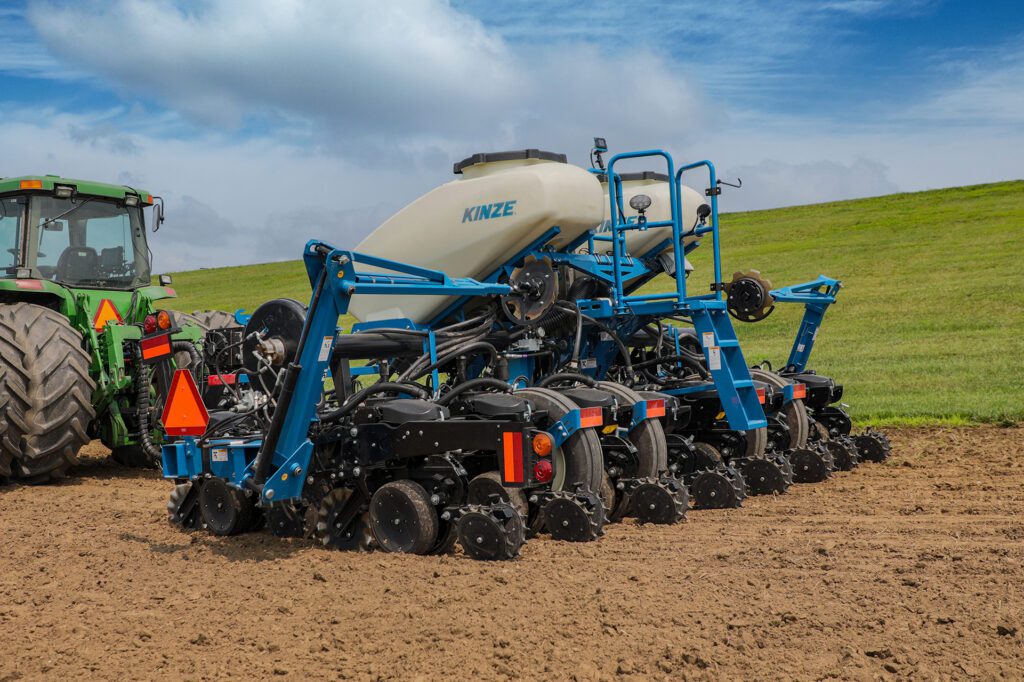

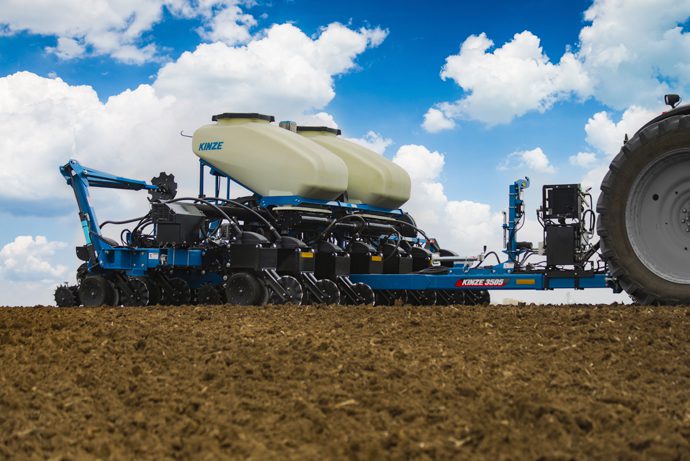

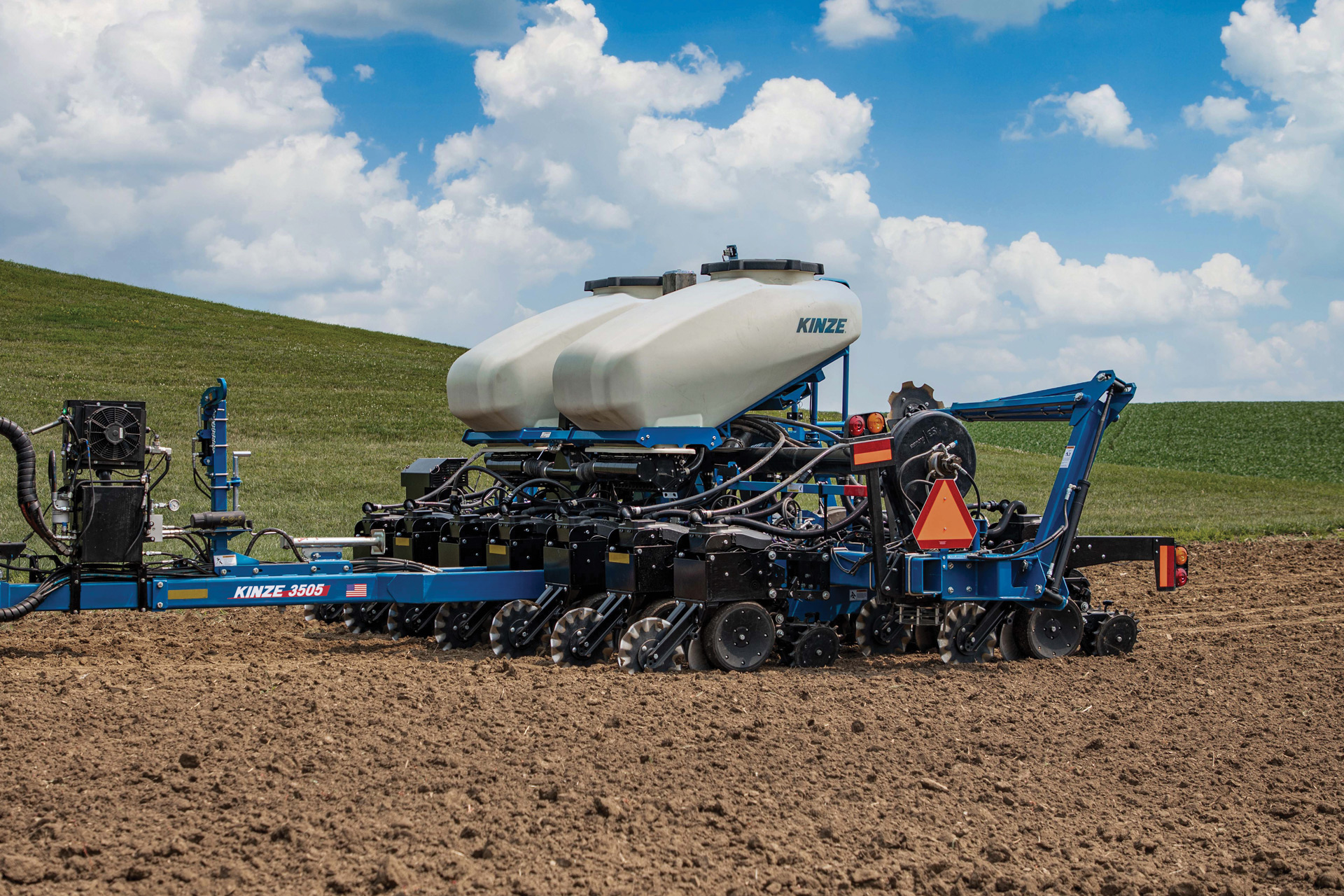

3505 Planter

PIVOT FOLD MODEL

8 ROW 30″ | 6 ROW 30″

The uniquely outfitted Kinze 3505 rigid frame, pivot fold planter is available as either a small frame classic or advanced technology planter that is ideal for small farms or easily navigating smaller fields. It is easy to operate, designed for high performance, and available with optional split rows, bulk-fill hoppers, and liquid and dry fertilizer for optimum efficiency.

TRUE. BLUE. Advantage

8 ROW 30″ | 6 ROW 30″

The proven pivot fold design of the classic 3505 has planted countless acres for years. Its ground contact drive when combined with the True Rate vacuum meter can plant at speeds up to 8 mph, as field conditions allow. Finger pick-up and brush meters are also available as mechanical metering solutions for planting at 4–6 mph.

8 ROW 30″

The 3505 is also available performance optimized with optional high tech features, including the Blue Vantage display*, Blue Drive electric drive*, True Speed high speed vacuum meters*, True Rate vacuum electric meters, and True Depth hydraulic down force*. With True Speed, accurately place seed at 3–12 mph, benefit from increased productivity and profits, and take advantage of smaller opportunities of time to get planting done.

^{*Only available on 8-row and 15/16-row configurations with bulk fill seed hoppers}

Key Benefits

Classic

Plant at speeds up to 8 mph, as field conditions allow, with the True Rate vacuum meter
Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
Improved durability, longer wear life, and lower cost of ownership with the 3005 Series row unit
Efficient fertilizer application with up to 300 gallons of liquid or 2,200 lbs. of dry fertilizer capacity

High Tech

Simple and easy to use Blue Vantage display with shared coverage data and up to four planter-mounted cameras
True high-performance and accurate split row planting with True Speed high speed meters, and Blue Drive electric drive
Consistent seed depth control from the optional True Depth hydraulic down force system
Exceptional seed handling capabilities with upgraded bulk fill entrainer—up to 11 different crops
Fewer stops from scale-equipped bulk fill seed hoppers with a total capacity of 50 bushels
Narrow transport and easy serviceability achieved with double frame, lift and pivot folding frame design
Improved durability, longer wear life, and lower cost of ownership with the 3005 Series row unit
Efficient fertilizer application with up to 300 gallons of liquid or 2,200 lbs. of dry fertilizer capacity
