High-speed disk tillage
width 41′ | transport width 16′

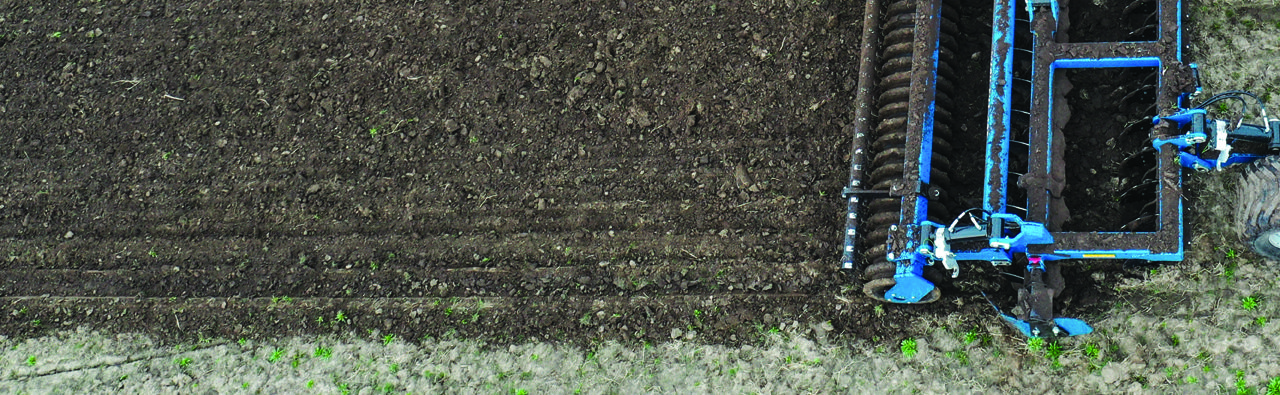

Kinze’s 412 Mach Till is designed and built for large operations with thousands of acres to cover in a very short amount of time, saving you time, energy, and money. Our 412 Mach Till is commonly used where the efficiency of a large-frame machine can be fully utilized on large parcels of land, where minimizing trips across the field is important. The low-maintenance design of the Mach Till minimizes down time and keeps it rolling through the field.
TRUE. BLUE. Advantage.
412 Mach Till Key Benefits
- Independently mounted discs have 11½” of clearance to enable discs to clear rocks and other obstacles while following land contours
- Four robust rubber spring elements pre-load the disc arms and keep discs firmly engaged with the soil
- Heavy-built frame provides the weight necessary for working in all soil conditions and is supported by four high-flotation tires
- Consistent working depth is maintained by distributing the frame weight wing-to-wing by the pressure compensated hydraulic weight distribution system
- The full width rubber furrow roller provides optimum, non-compacting soil and residue firming in various soil conditions
- Both the concave smooth and double-V discs are shallow-faced to provide an aggressive cutting edge while eliminating soil compaction layers
- Discs are spaced 10″ apart to enhance residue flow and eliminate plugging
- Maintenance-free double-sealed bearings, carbide roller scrapers, composite bushings, and oversized pins throughout provide many acres of low maintenance operation
- Tills an average of 50 acres per hour at 10 mph using a 620+ HP tractor operating at 80% field efficiency
412 MACH TILL FEATURE & OPTIONS
- Category 5 articulating hitch
- Tungsten carbide scrapers
- Hydraulic weight distribution
- 3-Section heavy built frame
- OTICO furrow rollers
- Independent disc arms
- Mechanical depth control
- Hydraulic jack
- Transport width of 16′-0″
- 20″ or 22″ smooth and double-V discs
